ISLAY submarines (1974-1975)

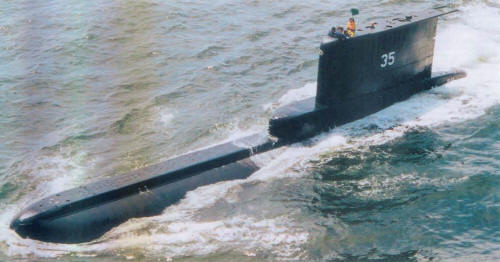

Islay 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Islay | 35 | Howaldtswerke, Kiel, West Germany | 15.5.1971 | 11.10.1973 | 23.8.1974 | in service (2019) | |
| Arica | 36 | Howaldtswerke, Kiel, West Germany | 1.11.1971 | 5.4.1974 | 21.1.1975 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement normal, t | 980 / 1230 |
| Length, m | 54.4 |
| Breadth, m | 6.20 |
| Draught, m | 5.50 |
| No of shafts | 1 |
| Machinery | 4 MTU 12V493 AZ80 GA31L diesel-generators, 1 Siemens electric motor |
| Power, h. p. | 2440 / 4600 |
| Max speed, kts | 11 / 21 |
| Fuel, t | diesel oil 63 |
| Endurance, nm(kts) | 11300(4) / 400(4) |
| Armament | 8 - 533 TT (bow, 14 SST-4) |
| Electronic equipment | Calypso radar, CSU-3Z sonar suite, DUUX-2CN sonar, ECM suite |
| Complement | 35 |
| Diving depth operational, m | 250 |
Standard scale images
Arica 1980
Graphics
Islay 2004
Project history
German Type 209/1200.
Modernizations
1986-1988, both: + Sepa Mk 3 CCS
2007-2008, both: - CSU-3Z sonar suite, DUUX-2CN sonar; + CSU-83 sonar suite, PRS-3/15 sonar, also SUT-264 torpedoes can be used
Naval service
No significant events.
