TENIENTE RODRÍGUEZ destroyer (1909/1914)

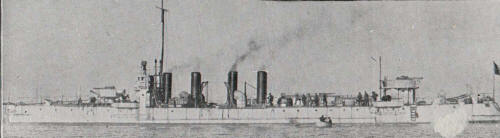

Teniente Rodríguez 1911
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Teniente Rodríguez (ex-Actée) | Schneider, Chalon-sur-Saône, France | 1907 | 1909 | 1911 | hulk 1939 |
Technical data
| Displacement normal, t | 490 |
|---|---|
| Displacement full, t | 520 |
| Length, m | 64.6 pp |
| Breadth, m | 6.54 wl |
| Draught, m | 3.10 |
| No of shafts | 3 |
| Machinery | 3 Schneider-Zoelly steam turbines, 4 du Temple boilers |
| Power, h. p. | 8600 |
| Max speed, kts | 28 |
| Fuel, t | coal 100 |
| Endurance, nm(kts) | 1200(10) |
| Armament | 6 x 1 - 65/50 M1902, 1 - 450 TT (bow), 2 x 1 - 450 TT |
| Complement | 79 |
Standard scale images
Teniente Rodríguez 1914
Graphics
Teniente Rodríguez 1911
Project history
French destroyer of Chasseur class, purchased incomplete by Peru. She was bought by Peru in 1911 but arrived Callao only in 1914.
Modernizations
None.
Naval service
In 1930s Rodríguez served as TS.
