CHICAMA patrol launches (2000)
Chancay 2004
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
216 Chicama 217 Huanchaco 218 Chorrillos 219 Chancay 220 Camaná 221 Chala |
SeaArk, Monticello, USA: 216-221 |
2000: 216-221 |
none |
none |
in service (2019): 216-221 |
Technical data
| Displacement standard, t | 14 |
|---|---|
| Displacement full, t | 15 |
| Length, m | 12.2 |
| Breadth, m | 4.30 |
| Draught, m | 1.30 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar 3208TA diesels |
| Power, h. p. | 690 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(18) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Furuno 821 radar |
| Complement | 4 |
Graphics

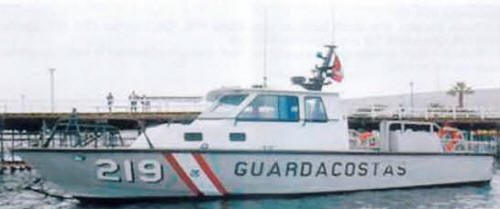

Chancay 2004
Project history
River patrol craft, later transferred to Pacific Coast. Aluminium hull and supertructure.
Modernizations
None.
Naval service
No significant events.
