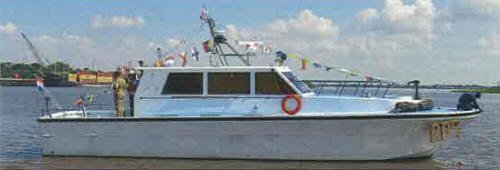

Tebicuary 2011

Ships

Names	Builders	Completed	Losses	Transfers	Discarding
P08 Yhaguy P09 Tebicuary	Nova Marine, Kaohsiung, Taiwan: P08, 09	1999: P08, 09	none	none	in service (2019): P08, 09

Technical data

Displacement standard, t	25
Displacement full, t
Length, m	16.1
Breadth, m	4.50
Draught, m	1.60
No of shafts	2
Machinery	2 Caterpillar 2406E diesels
Power, h. p.	1600
Max speed, kts	40
Fuel, t	diesel oil
Endurance, nm(kts)
Armament	3 x 1 - 7.6/90 (fitted for)
Electronic equipment	Furuno radar
Complement

Graphics

Project history

Donated by Taiwan. GRP construction.

Modernizations

None.

Naval service

No significant events.
