PARAGUAY
COASTAL FORCES
LP07 river patrol launches (1989-1991)





LP10 2003

Ships


Names Builders Commissioned Losses Transfers Discarding

LP07 - 19

Arsenal de Marina, Asunción: LP07-19

1989: LP07

1990: LP08, 09

1991: LP10, 11

None

None

2012: LP07

in service (2019): LP08-11



Technical data


Displacement standard, t
Displacement full, t

18

Length, m

14.7

Breadth, m

3.06

Draught, m

0.85

No of shafts

2

Machinery

2 General Motors 6-71 diesels

Power, h. p.

340

Max speed, kts

12

Fuel, t

diesel oil

Endurance, nm(kts)

240(12)

Armament

2 x 1 - 12.7/90

Electronic equipmentnone
Complement

4



Graphics

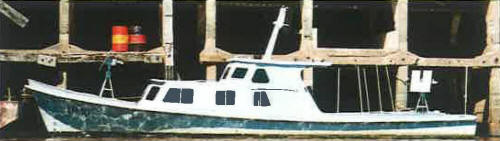

<i>LP10 </i>2003
LP10 2003


Project history

Small  launches. Planned building of 13 units was stooped on fifth. Steel construction.

Modernizations

None.

Naval service

In early 1990s all were stricken but returned to service in early 2000s after refit.
