ESCUDO DE VERAGUAS patrol craft (1970s/1996)
Escudo de Veraguas 1998
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comm | Fate |
|---|---|---|---|---|---|---|---|
| Escudo de Veraguas (ex-Aun Sin Nombre, ex-Kathyushka Kelly) | P305 | // 1996 | stricken 2013-14 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 158 |
| Length, m | 27.6 |
| Breadth, m | 7.30 |
| Draught, m | 1.90 |
| No of shafts | 2 |
| Machinery | 2 General Motors Detroit Diesel 12V71TI diesels |
| Power, h. p. | 840 |
| Max speed, kts | 10 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 2 x 1 - 7.6/90 |
| Electronic equipment | Raytheon radar |
| Complement | 10 |
Graphics

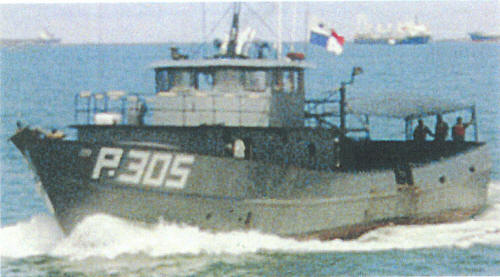

Escudo de Veraguas 1998
Project history
Former drug runner, confiscated in 1996, resembled a fishing boat.
Modernizations
None.
Naval service
No significant events.
