AL QUWAISAT logistics landing ships (2013)
Al Quwaisat
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| القوست [Al Quwaisat] | A81 | Shin Yang SCB, Kuala Baram, Malaysia | 15.12.2010 | 17.10.2012 | 2.10.2013 | in service (2020) | |
| البوتاس [Al Putaisi] | A82 | Shin Yang SCB, Kuala Baram, Malaysia | 15.12.2010 | 29.10.2012 | 2.10.2013 | in service (2020) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 2300 |
| Length, m | 80.0 |
| Breadth, m | 16.8 |
| Draught, m | 4.00 |
| No of shafts | 2 |
| Machinery | 2 Cummins KTA50M2 diesels |
| Power, h. p. | 4060 |
| Max speed, kts | 11 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | helicopter deck |
| Military load | cargo, tanks, 130 troops |
| Electronic equipment | 2x radars |
| Complement |
Graphics

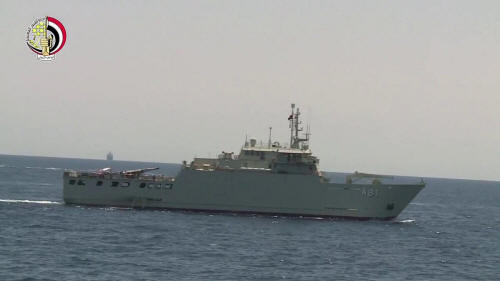

Al Quwaisat
Project history
Unusual ships with long forecastle, bow and aft ramps.
Modernizations
None.
Naval service
No significant events.
