BARRACUDA patrol launches (1960s/1992-1998)

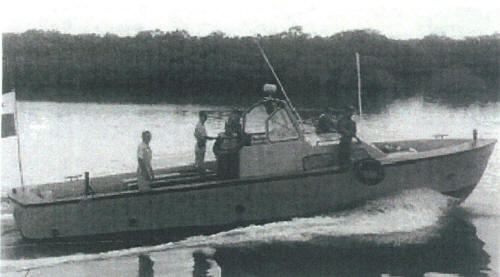

Calamar 1996
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PC3601 Barracuda PC3602 Calamar, 1998- P102 Calamar PC3603 Centollo P101 Panama |
USA: PC3601-3603, P101 |
1960s // 1992: PC3601-3603 1960s // 1998: P101 |
none |
None |
1997: PC3601, 3603 2012: P102 2014: P101 |
Technical data
| Displacement standard, t | 10 |
|---|---|
| Displacement full, t | 13 |
| Length, m | 9.26 pp 11.0 oa |
| Breadth, m | 3.97 |
| Draught, m | 1.13 |
| No of shafts | 1 |
| Machinery | 1 General Motors 8V71TI diesel |
| Power, h. p. | 350-425 |
| Max speed, kts | 19 |
| Fuel, t | diesel oil 0.5 |
| Endurance, nm(kts) | 160(12) |
| Armament | 1 x 1 - 7.6/90 |
| Electronic equipment | none |
| Complement | 5 |
Graphics
Calamar 1996
Project history
Former USN LCPL Mk 11 craft. GRP hull.
Modernizations
None.
Naval service
No significant events.
