M327 inshore minesweepers (1979-1984/1992)
M328 2008
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| (ex-РТ-136 [RT-136]) | M327 | 150 | Sredne-Nevskiy, Pontonnyy, USSR | 1984 // 3.7.1992 | in service (2020) | ||
| (ex-РТ-473 [RT-473]) | M328 | 138 | Sredne-Nevskiy, Pontonnyy, USSR | 1979 // 3.7.1992 | in service (2020) |
Technical data
| Displacement standard, t | 88 |
|---|---|
| Displacement full, t | 91 |
| Length, m | 26.1 |
| Breadth, m | 5.40 |
| Draught, m | 1.38 |
| No of shafts | 2 |
| Machinery | 2 3D12 diesels |
| Power, h. p. | 600 |
| Max speed, kts | 12 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(10) |
| Armament | 1 x 2 - 25/82 2M-3M, 1 x 7 - 55 MRG-1 GL, 2 DCR (12), IT-1 Neva-1 USV or IU-2 USV or MT-3U or VKT-1 mechanical or SEMT-1 magnetic or AT-2 acoustic minesweeping gear or 1 pr. 103 towed mine clearing line chargers carrier |
| Electronic equipment | Kivach radar, MG-7 Braslet sonar |
| Complement | 10 |
Standard scale images
M324 1980
Graphics

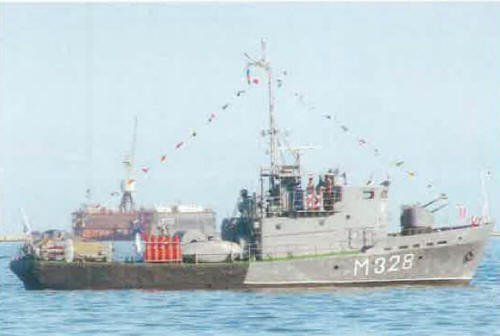

M328 2008
Project history
Former Soviet project 1258 inshore minesweepers.
Modernizations
None.
Naval service
No significant events.
