KASHMIR patrol ships (2018-)
Kashmir 2018
Ships
| Name | No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|
| کشمیر [Kashmir] | 143 | Huangpu, Guangzhou, China | 20.7.2018 | in service (2019) | ||
| کولاچی [Kolachi] | 144 | KSEW, Karachi | 1/2017 | 2019 | 2019 | building (2019) |
Technical data
| Displacement standard, t | 1550 |
|---|---|
| Displacement full, t | |
| Length, m | 94.0 |
| Breadth, m | 12.0 |
| Draught, m | |
| No of shafts | 2 |
| Machinery | 2 MAN Ruston 20RK270 diesels |
| Power, h. p. | 1770 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500 |
| Armament | 1 x 1 - 30/77 PJ-14, 2 x 1 - 12.7/90, helicopter deck |
| Electronic equipment | JMA5312 radar |
| Complement | 74 |
Graphics

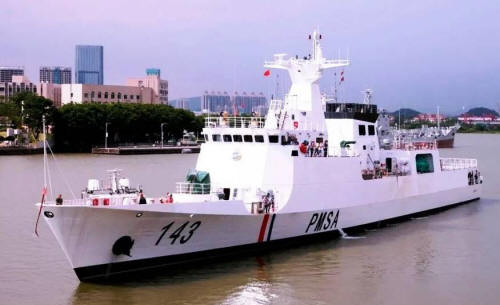

Kashmir 2018
Project history
Medium patrol ships. Maritime Security Agency.
Modernizations
None.
Naval service
No significant events.
