JALALAT fast attack craft (missile) (1997-1999)

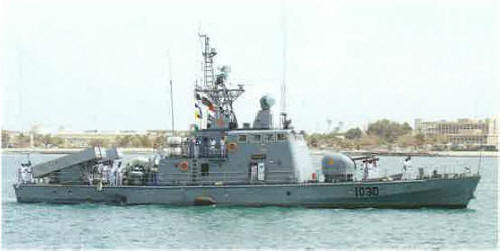

Shujaat 2012
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| جلالت [Jalalat] | P1029 | Karachi NSY | 16.11.1996 | 14.8.1997 | in service (2019) | ||
| شجاعت [Shujaat] | P1030 | Karachi NSY | 26.3.1999 | 29.9.1999 | in service (2019) |
Technical data
| Displacement standard, t | 170 |
|---|---|
| Displacement full, t | 200 |
| Length, m | 39.0 |
| Breadth, m | 6.70 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 5985 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(17) |
| Armament | 2 x 2 C-802 SSM (4 YJ-2), 1 x 2 - 37/63 type 76A88 |
| Electronic equipment | type 756, SR-47, type 347 radars, RW-28CB ECM suite, type 945G decoy RL |
| Complement | 35 |
Standard scale images
Jalalat 2000
Graphics
Shujaat 2012
Project history
Design as based on patrol craft Larkana, with Chinese armament and sensors.
Modernizations
None.
Naval service
No significant events.
