LARKANA patrol craft (1994)

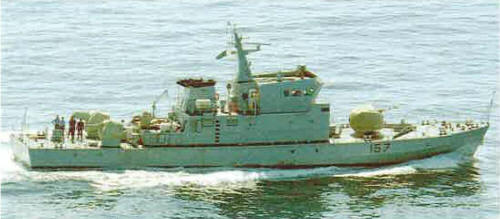

Larkana 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| لاڑکانہ [Larkana] | P157 | Karachi NSY | 1991 | 1994 | 6.6.1994 | in service (2019) |
Technical data
| Displacement standard, t | 150 |
|---|---|
| Displacement full, t | 180 |
| Length, m | 39.0 |
| Breadth, m | 6.70 |
| Draught, m | 1.64 |
| No of shafts | 2 |
| Machinery | 2 MTU diesels |
| Power, h. p. | 5000 |
| Max speed, kts | 23 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 2000(17) |
| Armament | 1 x 2 - 37/63 type 76A, 2 x 2 - 25/80 type 61M, 2 Mk 64 DCR |
| Electronic equipment | type 756 radar |
| Complement | 25 |
Graphics
Larkana 2004
Project history
First combatant built in Pakistan. Later boas were built missile-armed.
Modernizations
None.
Naval service
No significant events.
