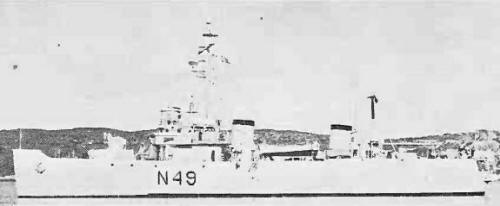

Brage 1972

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Tyr (ex-Sustain)	N47		American SB, Cleveland, USA	11.1941	23.6.1942	11.1942 // 10.1959	stricken 1975
Gor (ex-Strive)	N48		American SB, Cleveland, USA	11.1941	16.5.1942	10.1942 // 10.1959	stricken 1975
Brage (ex-Triumph)	N49		Associated, Seattle, USA	10.1942	25.2.1943	2.1944 // 2.1961	TS 1.1978
Uller (ex-Seer)	N50		American SB, Lorain, USA	11.1941	23.5.1942	10.1942 // 12.1962	stricken 1978

Technical data

Displacement standard, t	890
Displacement full, t	1250
Length, m	65.5 wl 67.4 oa
Breadth, m	9.80
Draught, m	3.40
No of shafts	2
Machinery	2 General Motors diesel-generators, 2 electric motors
Power, h. p.	2070
Max speed, kts	16
Fuel, t	diesel oil 200
Endurance, nm(kts)
Armament	N47-49: 1 x 1 - 76/50 Mk 21, 2 x 2 - 20/70 Mk 24, 2 x 24 - 178 Hedgehog Mk 10 ASWRL, 3 DCT, 80 mines N50: 1 x 1 - 76/50 Mk 21, 1 x 1 - 40/60 Mk 3, 1 x 6 - 375 Terne III ASWRL, 3 DCT, 80 mines
Electronic equipment	N47-49: radar, QCU sonar N50: radar, Terne III sonar
Complement	83

Graphics

TYR coastal minelayers (1942-1944/1959-1962)
