GLOMMEN minelayers (1917-1918)





Glommen

Ships


Name No Yard No Builder Laid down Launched Comm Fate
Glommen     Akers, Oslo 1916 1917 1917 captured by Germany 14.4.1940 (Glommen)
Laugen     Akers, Oslo 1916 10/1917 1918 captured by Germany 14.4.1940 (Laugen), returned 5.1945, BU 1948


Technical data


Displacement standard, t

335

Displacement full, t380
Length, m42.0
Breadth, m8.50
Draught, m2.10
No of shafts1
Machinery

1 VTE, 1 boiler

Power, h. p.170
Max speed, kts

9.8-9.9

Fuel, t

coal 21

Endurance, nm(kts)
Armament

2 x 1 - 76/28 Bofors, 120 mines

Complement35


Graphics

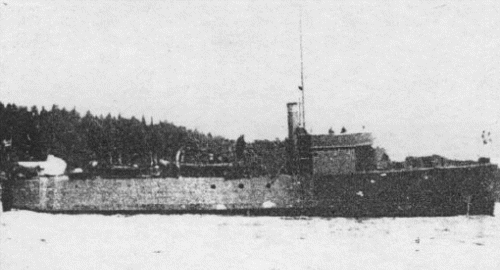

<i>Glommen</i>
Glommen


Project history

Coastal minelayers vessels specially created for service in Oslo-fiord.

Modernizations

None.

Naval service

Glommen and Laugen were captured by German troops 14.4.1940 at Tunsberg, and commissioned by Germans under the same names. Glommen was sunk by British aircraft 20.10.1940 in Trondheim-fjord. Laugen was returned to Norway after war.
