CAPE ROGER patrol ship (1977)

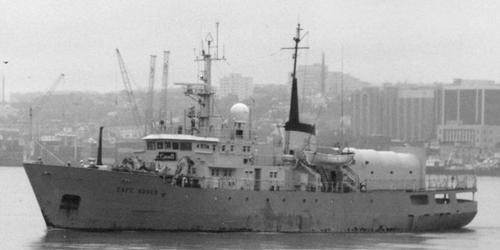

Cape Roger 1992
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Cape Roger | Ferguson, Pictou | 8.1977 | Coast Guard 4.1995, in service (2019) |
100 - 1000 t displacement/ BRT tonnage vessels
Technical data
| Displacement standard, t | 1500 |
|---|---|
| Displacement full, t | |
| Length, m | 57.3 pp 62.5 oa |
| Breadth, m | 12.1 |
| Draught, m | 5.30 |
| No of shafts | 2 |
| Machinery | 2 Nohab-Wärtsilä F212 diesels |
| Power, h. p. | 4460 |
| Max speed, kts | 17 |
| Fuel, t | diesel oil 190 |
| Endurance, nm(kts) | 10000(12) |
| Armament | 2 x 1 - 12.7/90 (fitted for), 1 helicopter (Bo-105CBS or Alouette III) |
| Electronic equipment | 2x radars |
| Complement | 19 |
Graphics
Cape Roger 1992
Project history
Patrol ship of Department of Fisheries and Oceans. Two Zodiac RIBs and two workboats.
Modernizations
2000s: -2x radars; + Decca C252/6, Sperry 3400M radars
Naval service
No significant events.
