AL NOKHETA patrol boats (2011-2013)
Al Noketha 2011
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P2701 لنختا [Al Nokheta] P2703 بوبيان [Bubiyan] P2705 كبار [Kubbar] P2707 بيان [Bayan] P2709 الشي [Al Shoaie] P2711 السفر [Al Saffar] P2713 السيب [Al Seep] P2715 البتيل [Al Bateel] P2717 الطواش [Al Tawash P2719 ألبوم [Al Boom] |
VT Halter Marine, Gulfport, USA: P2701, 2703, 2705, 2707, 2709, 2711, 2713, 2715, 2717, 2719 |
2011: P2701 2012: P2703, 2705, 2707, 2709, 2711 2013: P2713, 2715, 2717, 2719 |
none |
none |
in service (2020): P2701, 2703, 2705, 2707, 2709, 2711, 2713, 2715, 2717, 2719 |
Technical data
| Displacement standard, t | 57 |
|---|---|
| Displacement full, t | 72 |
| Length, m | 27.4 |
| Breadth, m | 5.50 |
| Draught, m | 1.50 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU 12V396 TE94 diesels |
| Power, h. p. | 4500 |
| Max speed, kts | 50 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 550(35) |
| Armament | 1 x 1 - 27/63 MLG-27, 2 x 1 - 12.7/90 |
| Electronic equipment | Furuno radar |
| Complement | 18 |
Graphics

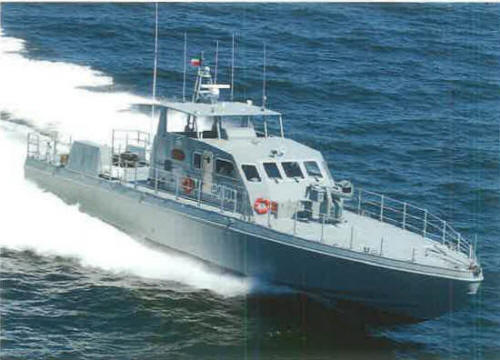

Al Noketha 2011
Project history
US PB Mk V type (Pegasus class), really modified Mk VC. Ordered in 2009 as replacement to Star Naja launches.
Modernizations
None.
Naval service
No significant events.
