Enymiri 1980

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
Erin'mi	F83		Vosper Thornycroft, Portsmouth, UK	14.10.1975	20.1.1977	29.1.1980	stricken 2012

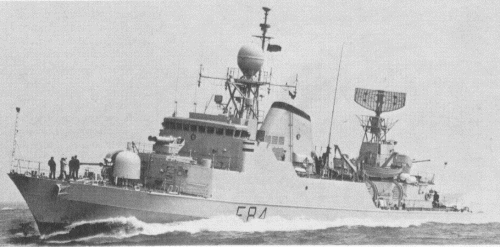

Enymiri	F84		Vosper Thornycroft, Portsmouth, UK	11.2.1977	9.2.1978	2.5.1980	in service (2019)

Technical data

Displacement standard, t	680
Displacement full, t	850
Length, m	64.0 pp 69.0 oa
Breadth, m	9.60
Draught, m	3.00 hull 3.60 max
No of shafts	2
Machinery	4 MTU 20V956 TB92 diesels
Power, h. p.	20500
Max speed, kts	27
Fuel, t	diesel oil
Endurance, nm(kts)	2200(14)
Armament	1 x 3 SeaCat GWS-24 SAM (15 SeaCat), 1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 GAM-B01, 1 x 2 - 375 Bofors ASWRL
Electronic equipment	Decca TM1226, AWS-2, WM-24 radars, PMS-26 sonar, Cutlass ECM suite
Complement	90

Standard scale images

Graphics

Project history

Vosper Thornycroft Mk 9 corvettes ordered in 1975. The funnel was heightened after trials.

Modernizations

early 1980s, both: + 2x Protean decoy RL

Naval service

Enymiri was stricken 1996 but restored in service in 2000 and was badly damaged by explosion and fire 23.12.2004 at Lagos. Returned to service in 2007.
