Port Harcourt 1982

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
P200 Abeokuta P201 Akure P202 Bauchi P203 Benin City P204 Enugu P205 Ikeja P206 Iloren P207 Jos P208 Kaduna P209 Kano P210 Maidugiri P211 Minna P212 Ourerri P213 Port Harcourt P214 Sokoto	Intermarine, La Spezia, Italy: P200-214	1981: P200-208 1982: P209-214	none	none	mid-1980s: P204, 209-212 early 1990s: P200-203, 205-208, 213, 214

Technical data

Displacement standard, t
Displacement full, t	20
Length, m	16.5 pp 18.2 oa
Breadth, m	5.00
Draught, m	0.85
No of shafts	2 waterjets
Machinery	2 MTU 8V331 TB91 diesels
Power, h. p.	2700
Max speed, kts	35
Fuel, t	diesel oil
Endurance, nm(kts)	300(32)
Armament	1 x 1 - 20/70 Mk 4, 2 x 1 - 7.6/90
Electronic equipment	radar
Complement	9

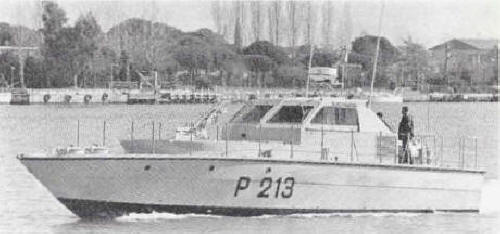

Graphics

Project history

Type Mk 2 AM. GRP hull. Fishery protection boats, built for Coast Guard.

Modernizations

None.

Naval service

No significant events.
