GC323 patrol boats (1977-1978)
El Qarsh 2006
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
GC323, 1995- 323 إليك [El Ayouk] GC324, 1995- 324 الأبراميس [El Abramis] GC331, 1995- 331 القرش [El Qarsh] GC332, 1995- 332 زحل [Zouhel] GC333, 1995- 333 البحر [El Bahr] GC334, 1995- 334 موراي [Mawray] |
Baglietto, Varazze, Italy: GC323, 324, 331-334 |
1977-1978: GC323, 324, 331-334 |
none |
none |
in service (2019): 323, 324, 331-334 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 91 |
| Length, m | 30.0 |
| Breadth, m | 5.84 |
| Draught, m | 2.10 |
| No of shafts | 3 |
| Machinery | 3 MTU diesels |
| Power, h. p. | 4050 |
| Max speed, kts | 32 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1400(12.5) |
| Armament | 1 x 2 - 25/82 2M3-M, 1 x 1 - 20/70 Mk 10 |
| Electronic equipment | 3RM20SMA radar |
| Complement | 14 |
Graphics

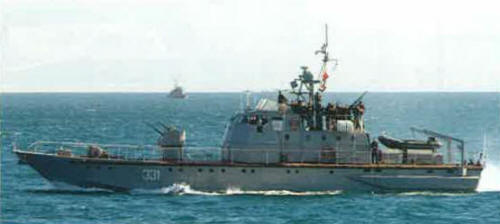

El Qarsh 2006
Project history
Baglietto Mangusta class. Coast Guard.
Modernizations
None.
Naval service
All were decommissioned between 1998 and 2001 but were restored in service in 2006-2008.
