No80 patrol boats (1996)
No 81 2000
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
80-82 |
Peterson Bldrs, Sturgeon Bay, USA: 80-82 |
10-12/1996: 80-82 |
none |
none |
in service (2019): 80-82 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 20 |
| Length, m | 15.5 |
| Breadth, m | 3.96 |
| Draught, m | 0.86 |
| No of shafts | 2 waterjets |
| Machinery | 2 MTU diesels |
| Power, h. p. | 2300 |
| Max speed, kts | 45 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(30) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | Raytheon radar |
| Complement | 5 |
Graphics

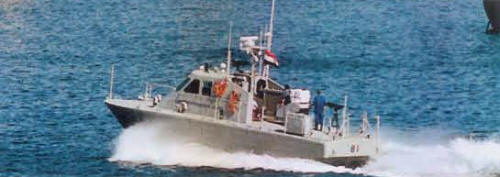

No 81 2000
Project history
Peterson 48ft design. Aluminium construction.
Modernizations
None.
Naval service
No significant events.
