Evertsen Many thanks to Wolfgang Stöhr for additional information on this page.

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
De Ruyter, 1933- Van Ghent	DR, 1933- GT	179	De Schelde, Vlissingen	8.1925	23.10.1926	5.1928	wrecked 15.2.1942

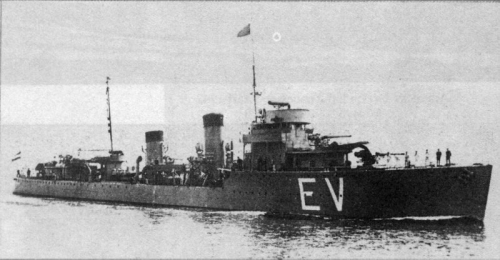

Evertsen	EV		Burgerhout`s, Rotterdam	8.1925	29.12.1926	5.1928	lost 28.2.1942
Kortenaer	KN		Burgerhout`s, Rotterdam	8.1925	30.7.1927	9.1928	sunk 27.2.1942
Piet Hein	PH		Burgerhout`s, Rotterdam	8.1925	2.4.1927	1.1928	sunk 19.2.1942

Technical data

Displacement standard, t	1316
Displacement full, t	1640
Length, m	93.6 pp 98.2 oa
Breadth, m	9.53
Draught, m	2.97
No of shafts	2
Machinery	2 sets Parsons geared steam turbines, 3 Yarrow boilers
Power, h. p.	31000
Max speed, kts	36
Fuel, t	oil 300
Endurance, nm(kts)	3200(15)
Armament	4 x 1 - 120/50 Bofors No.4, 2 x 1 - 75/52 SA No.2, 4 x 1 - 12.7/90, 2 x 3 - 533 TT, 4 DCT (12), 32 mines, 1 seaplane (C.VIIW)
Complement	129

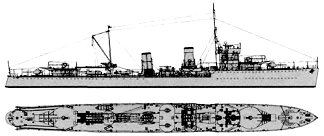

Standard scale images

Graphics

Project history

In the early twenties Dutch Navy has started replacement of obsolete destroyers of "Roofdier" (Fret) class, built prior to beginning of the First World War. The design was developed by Yarrow and was based on a construction of British destroyer Ambuscade, but was adapted for building by Dutch shipbuilders. Four destroyers were laid down by summer of 1925. They received names in honour of Dutch naval commanders, therefore they are quite often called as 1st series of "Admiralen" type.

Outwardly ships did not differ from British analogues, but there were numerous changes in details. Main calibre consisted of Bofors No.4 120mm/50 guns which placed in single mounts on two fore and aft. Guns No.2 and No.3 had no shields, and No.1 and No.4 were covered only in front. For a fire control two rangefinders were available: one over the bridge, and second on portside of platform between TTs. To increase offensive potential of destroyers, they had mine rails.

Seaplane carrying ability was necessary, according to Dutch Naval commanders, for service in waters of the Dutch East Indies, and was the most unusual detail of the design. Seaplane should be stored over the second TT bank on light platform on which it should be handled by a derrick placing near to a mainmast. In turn, mainmast should be transferred from aft superstructure to platfrom between TTs, and two searchlights have been placed on the platforms abreast fore funnel. Standard seaplane in a beginning of war was Fokker C.VIIW, single-engined double-seat biplane, armed with MGs and capable to carry some small bombs, however to the beginning of operations on Pacific destroyers have landed their aviation equipment.

Modernizations

1940-1941, all: - seaplane

1941, Van Ghent: + type 128 sonar

Naval service

De Ruyter was renamed Van Ghent in 1933 to free a name to new cruiser. Van Ghent was hard damaged 15.2.1942 as result of wrecking to a reef at Tjillajap, abandoned and sunk by gunfire of destroyer Banckert. Piet Hein was sunk 19.2.1942 by Japanese destroyers Asashio, Oshio and Michishio in Badoeng Strait. Kortenaer was sunk 27.2.1942 by torpedo hit from Japanese cruiser Haguro in Java sea. Evertsen was hard damaged 28.2.1942 in battle against Japanese destroyers Shirakumo and Murakumo in Sunda Strait, ran aground and 1.3.1942 was blown up by crew.
