XXI HEKLA 2nd class torpedo boats (1882)





Hekla

Ships


Names Builders Commissioned Losses Transfers Discarding

No.XXI, 1891- Hekla

No.XXII, 1892- Etna

Yarrow, Poplar, UK: No.XXI, XXII

1882: No.XXI, XXII

none

none

1912: Etna

1913: Hekla



Technical data


Displacement normal, t
Displacement full, t45
Length, m

31.0

Breadth, m

3.81

Draught, m

1.68

No of shafts

1

Machinery

1 HC, 1 locomotive boiler

Power, h. p.

550

Max speed, kts

21.4

Fuel, t

coal 5

Endurance, nm(kts)560(10)
Armament

2 x 1 - 37/20 Hotchkiss, 2 - 356 TT (bow)

Complement

15



Standard scale images


<i>Etna </i>1892
Etna 1892


Graphics

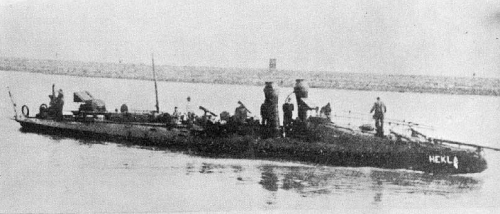

<i>Hekla</i>
Hekla


Project history

2nd class torpedo boats, in 1891 rerated as 1st class torpedo boats.

Modernizations

None.

Naval service

No significant events.
