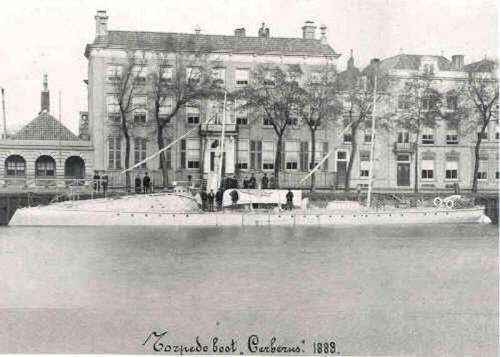

CERBERUS 1st class torpedo boat (1888)





Cerberus@import url(http://www.google.com/cse/api/branding.css);

Ships


Names Builders Commissioned Losses Transfers Discarding

No.XXIII, 1891- Cerberus

De Schelde, Vlissingen: No.XXIII

1888: No.XXIII

none

none

1920: Cerberus



Technical data


Displacement normal, t

82

Displacement full, t
Length, m

38.2

Breadth, m

3.97

Draught, m

1.83

No of shafts

1

Machinery

1 VC, 1 locomotive boiler

Power, h. p.

912

Max speed, kts

21.2

Fuel, t

coal 10

Endurance, nm(kts)

1400(10)

Armament

2 x 1 - 37/20 Hotchkiss, 1 - 450 TT (bow), 2 x 1 - 450 TT

Complement

16



Standard scale images


similar <i>Ardjoeno </i>1887
similar Ardjoeno 1887


Graphics


<i>Cerberus</i>@import url(http://www.google.com/cse/api/branding.css);
Cerberus@import url(http://www.google.com/cse/api/branding.css);


Project history

2nd class torpedo boat, rerated as 1st class in 1891.

Modernizations

None.

Naval service

No significant events.
