BRENDAN SIMBWAYE patrol craft (2009)

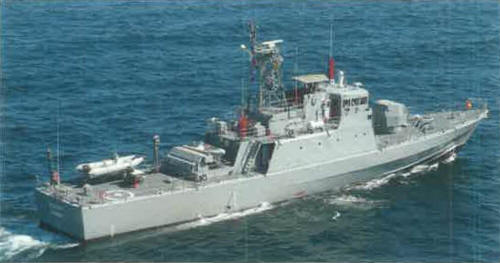

Brendan Simbwaye 2010
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Brendan Simbwaye | P11 | INACE, Fortaleza, Ceará, Brazil | 25.2.2005 | 1.5.2008 | 2.6.2009 | in service (2020) |
Technical data
| Displacement standard, t | 217 |
|---|---|
| Displacement full, t | 263 |
| Length, m | 42.5 pp 46.5 oa |
| Breadth, m | 7.50 |
| Draught, m | 2.30 |
| No of shafts | 2 |
| Machinery | 2 MTU 16V396 TB94 diesels |
| Power, h. p. | 5560 |
| Max speed, kts | 24 |
| Fuel, t | diesel oil 23 |
| Endurance, nm(kts) | 2200(12) |
| Armament | 1 x 1 - 40/70 Bofors 350, 2 x 1 - 20/90 GAM-B01 |
| Electronic equipment | Decca 1290A radar |
| Complement | 31 |
Standard scale images
Brendan Simbwaye 2010
Graphics
Brendan Simbwaye 2010
Project history
Brazilian Graúna class, ordered in 2003. Used for fisheries patrol duty.
Modernizations
None.
Naval service
No significant events.
