MYANMAR (BURMA)
AMPHIBIOUS SHIPS AND CRAFT
LCM701 landing craft (1940s/1960s?)

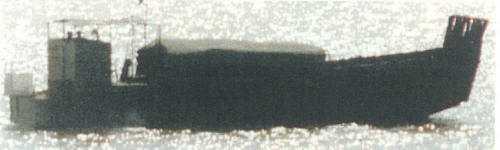

LCM704 1994
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
LCM701-710 |
USA: LCM701-710 | 1944-1945 // 1960s: LCM701-710 |
none | none | in service (2019): LCM701-710 |
Technical data
| Displacement standard, t | 25 |
|---|---|
| Displacement full, t | 56 |
| Length, m | 17.1 |
| Breadth, m | 4.33 |
| Draught, m | 1.17 |
| No of shafts | 2 |
| Machinery | 2 diesels |
| Power, h. p. | 450 |
| Max speed, kts | 9 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 130(9) |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 1 tank or 60 troops or 30.8 t of cargo |
| Complement | 5 |
Standard scale images
LCM701 1980
Graphics
LCM704 1994
Project history
Former USN LCM(6) craft.
Modernizations
None.
Naval service
No significant events.
