LIEUTENANT MALGHAGH small landing ship (1965)

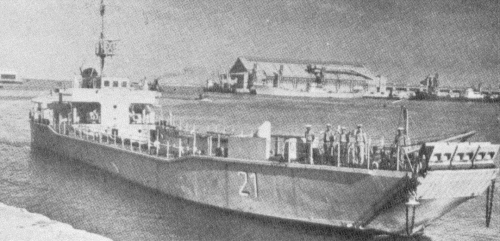

Lieutenant Malghagh 1971
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| ليوتننت ملخخ [Lieutenant Malghagh] | 21, later- 401 | CN Franco-Belges, Raismes, France | 17.9.1963 | 10.1.1964 | 1965 | retired 2007 |
Technical data
| Displacement standard, t | 292 |
|---|---|
| Displacement full, t | 642 |
| Length, m | 59.0 |
| Breadth, m | 12.0 |
| Draught, m | 1.30 mean 1.62 full load |
| No of shafts | 2 |
| Machinery | 2 MGO diesels |
| Power, h. p. | 1000 |
| Max speed, kts | 8 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(8) |
| Armament | 2 x 1 - 20/70 Mk 10, 1 x 1 - 120/12 mortar |
| Military load | 11 trucks |
| Electronic equipment | Decca 1226 radar |
| Complement | 16 |
Standard scale images
Lieutenant Malghagh 1975
Graphics
Lieutenant Malghagh 1971

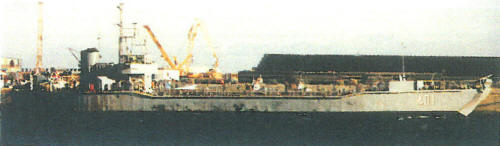

Lieutenant Malghagh 1995
Project history
French EDIC design.
Modernizations
None.
Naval service
No significant events.
