EL WACIL patrol boats (1975-1976)
El Khafir 2013
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
203 الوكيل [El Wacil] 204 الجيل [El Jail] 205 المقدم [El Mikdam] 206 الخفير [El Khafir] 207 الحريص [El Kharis] 208 إسهر [Essahir] |
CMN, Cherbourg, France: 203-208 |
1975: 203, 204 1976: 205-208 |
none |
none |
in service (2019): 202-208 |
Technical data
| Displacement standard, t | 81 |
|---|---|
| Displacement full, t | 89 |
| Length, m | 30.0 pp 32.3 oa |
| Breadth, m | 5.35 |
| Draught, m | 1.70 |
| No of shafts | 2 |
| Machinery | 2 SACM MGO 12V BZSHR diesels |
| Power, h. p. | 2700 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1200(15) |
| Armament | 2 x 1 - 20/70 Mk 4 |
| Electronic equipment | Decca radar |
| Complement | 17 |
Graphics

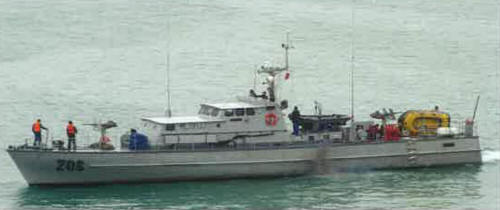

El Khafir 2013
Project history
French P32 design. Wooden hull sheathed in plastic.
Modernizations
None.
Naval service
No significant events.
