E20609 patrol launches (1992)
2006
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
E20609 E20689 E22927 12 other units |
Arcor, La Teste, France: 15 units |
1992: 15 units |
none |
none |
in service (2019): 15 units |
Technical data
| Displacement standard, t | 13 |
|---|---|
| Displacement full, t | 16 |
| Length, m | 16.9 |
| Breadth, m | 4.00 |
| Draught, m | 1.15 |
| No of shafts | 2 |
| Machinery | 2 Unidiesel UD19V8M5 diesels |
| Power, h. p. | 1250 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(20) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Furuno 7040D radar |
| Complement | 4 |

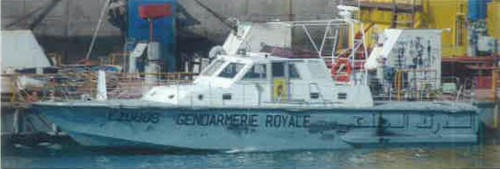

Graphics
2006
Project history
French Arcor 53 design. Manned by Gendarmerie.
Modernizations
None.
Naval service
No significant events.
