DAOUD BEN AICHA medium landing ships (1977-1978)

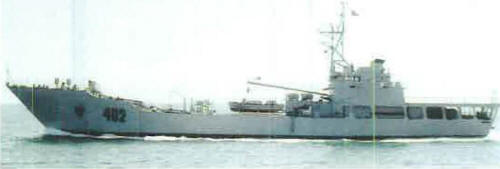

Daoud Ben Aicha 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| داود بن عائشة [Daoud Ben Aicha] | 402 | Dubigeon-Normandie, Dubigeon, France | 28.5.1977 | in service (2019) | |||
| أحمد إس صقل [Ahmed Es Sakali] | 403 | Dubigeon-Normandie, Dubigeon, France | 9.1977 | in service (2019) | |||
| أبو عبدالله العياشي [Abou Abdallah El Ayachi] | 404 | Dubigeon-Normandie, Dubigeon, France | 12.1978 | in service (2019) |
Technical data
| Displacement standard, t | 750 |
|---|---|
| Displacement full, t | 1305 |
| Length, m | 68.0 pp 80.0 oa |
| Breadth, m | 13.0 |
| Draught, m | 2.30 |
| No of shafts | 2 |
| Machinery | 2 SACM 195V12 SHR diesels |
| Power, h. p. | 3600 |
| Max speed, kts | 16 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3500(13) |
| Armament | 2 x 1 - 40/70 Breda-Bofors 107, 2 x 1 - 12.7/90, 2 x 1 - 81/12 mortars, helicopter deck |
| Military load | 12 vehicles, 133 troops or 380 t cargo |
| Electronic equipment | Decca 1226 radar |
| Complement | 57 |
Standard scale images
Daoud Ben Aicha 1980
Graphics
Daoud Ben Aicha 2004
Project history
French Champlain class.
Modernizations
None.
Naval service
No significant events.
