MOROCCO
AMPHIBIOUS SHIPS AND CRAFT
CTM landing craft (1966/2000)
2006
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| (ex-CTM5) | CMN, Cherbourg, France | 20.10.1965 | 25.2.1966 | 3.1966 // 1.8.2000 | in service (2019) |
Technical data
| Displacement standard, t | 56 |
|---|---|
| Displacement full, t | 150 |
| Length, m | 23.8 |
| Breadth, m | 6.35 |
| Draught, m | 1.17 |
| No of shafts | 2 |
| Machinery | 2 Poyaud V8520NS diesels |
| Power, h. p. | 480 |
| Max speed, kts | 9.5 |
| Fuel, t | diesel oil 3 |
| Endurance, nm(kts) | 380(8) |
| Armament | 2 x 1 - 12.7/90 |
| Military load | 90t of cargo |
| Electronic equipment | Koden radar |
| Complement | 6 |

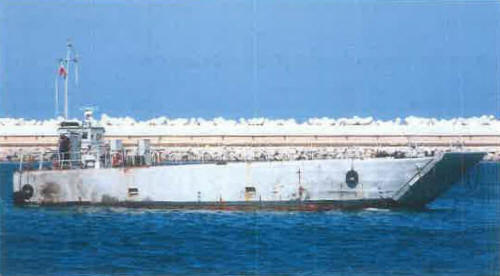

Graphics
2006
Project history
Former French CTM1 class LCM.
Modernizations
None.
Naval service
No significant events.
