No130 patrol boats (2009-2010)
130 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| 130 | Rodman, Vigo, Spain | 2009 | in service (2019) | ||||
| 131 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 132 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 133 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 134 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 135 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 136 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 137 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 138 | Rodman, Vigo, Spain | 2009-10 | in service (2019) | ||||
| 139 | Rodman, Vigo, Spain | 2009-10 | in service (2019) |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 109 |
| Length, m | 30.0 |
| Breadth, m | 6.00 |
| Draught, m | 1.75 |
| No of shafts | 2 waterjets |
| Machinery | 2 Caterpillar 3412C diesels |
| Power, h. p. | 2800 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 800(12) |
| Armament | 3 x 1 - 12.7/90 |
| Electronic equipment | 2x nav. radars |
| Complement | 9 |

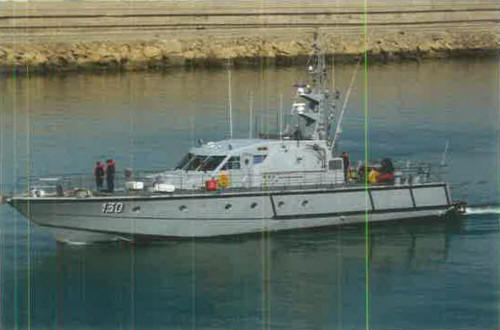

Graphics
130 2009
Project history
Rodman 130 design. GRP hull.
Modernizations
None.
Naval service
No significant events.
