No323 patrol boat (1976/2004)





323 2006

Ships


Name No Yard No Builder Laid down Launched Comp Fate
(ex-Cygnet) 323   Richard Dunston, Hessle, UK 10.1973 26.10.1975 8.7.1976 // 2004 in service (2019)


Technical data


Displacement standard, t

167

Displacement full, t

187

Length, m

36.6 oa 33.8 pp

Breadth, m

7.16

Draught, m

2.00

No of shafts

2

Machinery

2 Paxman 16YJCM diesels

Power, h. p.

4000

Max speed, kts

25

Fuel, t

diesel oil

Endurance, nm(kts)2000(14)
Armament

2 x 1 - 7.6/90

Electronic equipment

type 1006(4) radar

Complement

14



Graphics

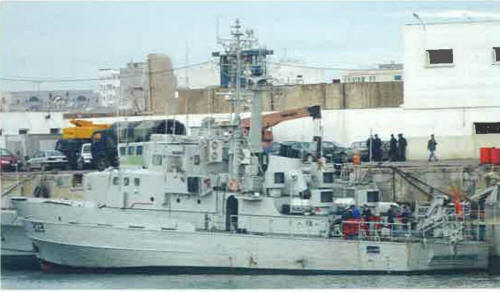

<i>323 </i>2006
323 2006


Project history

Former RN Bird class patrol craft sold to a private buyer and delivered 11.4.1997 to Agadir. Ship was implicated in a counter-drugs operations and confiscated by the Moroccan authorities and in 2004 transferred to navy.

Modernizations

None.

Naval service

No significant events.
