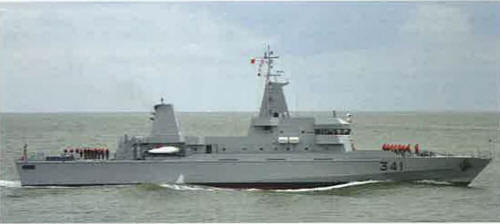

Bain Anzarane 2011 without armament

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate
بين انظرن [Bin Anzarane]	341		STX, Lanester, France // Raidco Marine, Lorient, France		25.8.2010	23.6.2011	in service (2019)

Technical data

Displacement standard, t	650
Displacement full, t	800
Length, m	70.0
Breadth, m	11.3
Draught, m	3.22
No of shafts	2
Machinery	2 Wärtsilä 12V26A diesels
Power, h. p.	11100
Max speed, kts	22
Fuel, t	diesel oil
Endurance, nm(kts)	4500(12)
Armament	1 x 1 - 76/62 OTO-Melara Compact, 1 x 1 - 40/70 Breda-Bofors 564, 2 x 2 - 14.5/93, 2 x 1 - 12.7/90
Electronic equipment	2x Sperry BridgeMaster II radars
Complement	64

Standard scale images

Graphics

Project history

French Raidco OPV70 design, ordered 2008. Steel hull and aluminium superstructure.

Modernizations

None.

Naval service

No significant events.
