D01 patrol launches (1987)
D09 2010
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
D01-18 |
Arcor, La Teste, France: D01-18 |
1987: D01-18 |
none |
none |
1998: D08 in service (2019): D01-07, 09-18 |
Technical data
| Displacement standard, t | 12 |
|---|---|
| Displacement full, t | 15 |
| Length, m | 12.4 pp 14.5 oa |
| Breadth, m | 4.00 |
| Draught, m | 1.15 |
| No of shafts | 2 |
| Machinery | 2 Poyaud-Wärtsilä UD18V8 diesels |
| Power, h. p. | 1000 |
| Max speed, kts | 33 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 300(20) |
| Armament | 1 x 1 - 12.7/90 |
| Electronic equipment | Furuno 701 radar |
| Complement | 6 |
Graphics

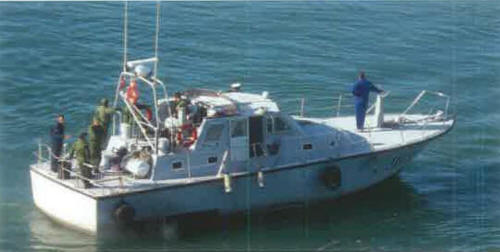

D09 2010
Project history
French Arcor 46 design. Customs.
Modernizations
None.
Naval service
No significant events.
