No107 patrol boats (2006-2010)
107 2006
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
107-117 |
Raidco Marine, Lorient, France // CNB, L'Herbaudière, France: 107-117 |
2006: 107-110 2007: 111-114 2008: 115, 116 2010: 117 |
none |
none |
in service (2019): 107-117 |
Technical data
| Displacement standard, t | 32 |
|---|---|
| Displacement full, t | 42 |
| Length, m | 17.3 pp 20.0 oa |
| Breadth, m | 5.29 |
| Draught, m | 1.50 |
| No of shafts | 2 |
| Machinery | 2 MAN 2842 LE413 |
| Power, h. p. | 2000 |
| Max speed, kts | 28 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 600(18) |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | Furuno M1932 radar |
| Complement | 8 |
Graphics

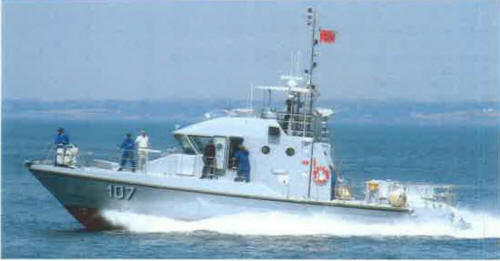

107 2006
Project history
French BPB20TE design. GRP hull. Stern ramp for 4.9m RIB.
Modernizations
None.
Naval service
No significant events.
