LIEUTENANT DE VAISSEAU RABHI patrol craft (1988-1989)
El Bachir 2009
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| لوطننة د فيس رابحي [Lieutenant de Vaisseau Rabhi] | 310 | Bazán, Cadiz, Spain | 23.9.1987 | 16.9.1988 | in service (2019) | ||
| رشيق [Errachiq] | 311 | Bazán, Cadiz, Spain | 23.9.1987 | 16.12.1988 | in service (2019) | ||
| الأكيد [El Akid] | 312 | Bazán, Cadiz, Spain | 29.3.1988 | 4.4.1989 | in service (2019) | ||
| المهر [El Maher] | 313 | Bazán, Cadiz, Spain | 29.3.1988 | 20.6.1989 | in service (2019) | ||
| الماجد [El Majid] | 314 | Bazán, Cadiz, Spain | 21.10.1988 | 26.9.1989 | in service (2019) | ||
| البشير [El Bachir] | 315 | Bazán, Cadiz, Spain | 21.10.1988 | 19.12.1989 | in service (2019) |
Technical data
| Displacement standard, t | 307 |
|---|---|
| Displacement full, t | 425 |
| Length, m | 54.4 pp 58/1 oa |
| Breadth, m | 7.62 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 Bazán-MTU 16V956 TB82 diesels |
| Power, h. p. | 7600 |
| Max speed, kts | 22 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 3800(12) |
| Armament | 1 x 1 - 76/62 OTO-Melara Compact (fitted for), 1 x 1 - 40/70 Breda-Bofors 564, 2 x 1 - 20/90 F2 |
| Electronic equipment | 2x Decca nav. radars, Naja e/o system |
| Complement | 36 + 15 passengers |
Graphics

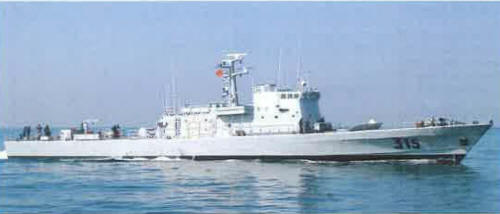

El Bachir 2009
Project history
Spanish Cormoran/Lazaga class, modified for fishery protection duties.
Modernizations
mid-2000s, some: unarmed
2006, El Akid; 2007, El Majid; 2009, El Bachir; 2012, Lieutenant de Vaisseau Rabhi, El Maher: - Naja e/o system; + Lynx e/o system
Naval service
No significant events.
