AL BACHIR large patrol craft (1967)
Al Bachir
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| أل بشر، أل بجر [Al Bachir] | 12, later- 202 | CMN, Cherbourg, France | 6.1965 | 25.2.1967 | 4.1967 | discarded 1990 |
Technical data
| Displacement standard, t | 125 |
|---|---|
| Displacement full, t | 154 |
| Length, m | 40.6 |
| Breadth, m | 6.40 |
| Draught, m | 1.40 |
| No of shafts | 2 |
| Machinery | 2 SEMT-Pielstick 12PA diesels |
| Power, h. p. | 3600 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil 21 |
| Endurance, nm(kts) | 2000(15) |
| Armament | 2 x 1 - 40/70 type 107, 2 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 23 |
Graphics

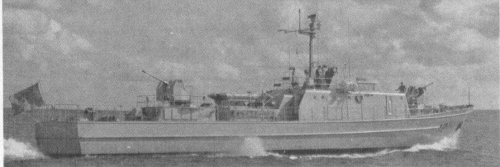

Al Bachir
Project history
Large patrol craft.
Modernizations
None.
Naval service
No significant events.
