HURACÁN fast missile corvettes (1980/2004)

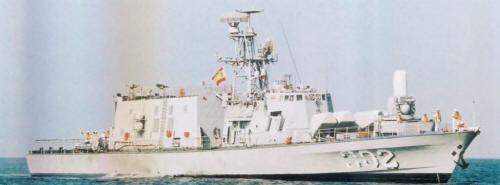

Tormenta 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Huracán (ex-Aliyah) | P301, 2015- P401 | Israeli SY, Haifa, Israel | 10.7.1980 | 8.1980 // 7.2004 | in service (2019) | ||
| Tormenta (ex-Geoula) | P302 | Israeli SY, Haifa, Israel | 10.1980 | 31.12.1980 // 7.2004 | stricken 2015 |
Technical data
| Displacement standard, t | 375 |
|---|---|
| Displacement full, t | 500 |
| Length, m | 58.2 pp 61.7 oa |
| Breadth, m | 7.09 wl 7.62 oa |
| Draught, m | 2.40 hull 2.78 max |
| No of shafts | 4 |
| Machinery | 4 MTU 16V956 TB91 diesels |
| Power, h. p. | 14000 |
| Max speed, kts | 31 |
| Fuel, t | diesel oil 116 |
| Endurance, nm(kts) | 4000(17) |
| Armament | 2 x 4 Harpoon SSM (8 RGM-84C), 4 x 1 Gabriel Mk 2 SSM (4 Gabriel Mk 2), 1 x 6 - 20/76 Phalanx Mk 15, 2 x 1 - 20/70 Mk 10, 4 x 1 - 12.7/90, 1 helicopter |
| Electronic equipment | THD1040 Neptune, RTN-10X radars, NS9003, NS9005 ECM suites, 1x45, 4x24, 4x1 decoy RL |
| Complement | 27 |
Standard scale images
Huracán 2010
Graphics
Tormenta 2004
Project history
Former Israeli Sa'ar 4.5 class FACs. Transferred without Harpoon missiles, only with Gabriels.
Modernizations
None.
Naval service
No significant events.
