DEMÓCRATA patrol craft (1998)

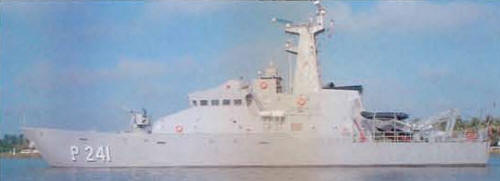

Demócrata 2004
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| Demócrata | C101, 2001- P241 | Astimar, Guaymas | 1997 | 16.10.1997 | 9.7.1998 | in service (2019) |
Technical data
| Displacement standard, t | 400 |
|---|---|
| Displacement full, t | 450 |
| Length, m | 52.5 |
| Breadth, m | 9.00 |
| Draught, m | 2.70 |
| No of shafts | 2 |
| Machinery | 2 MTU 20V956 TB92 diesels |
| Power, h. p. | 12240 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 2 - 40/60 Mk 1 |
| Electronic equipment | 2x Decca radars |
| Complement | 37 |
Standard scale images
Demócrata 2000
Graphics
Demócrata 2004
Project history
Planned as replace for WWII-era Auk and Admirable classes. Carries a Boston Whaler Piranha-class armed inspection launch and two rescue RIBs.
Modernizations
None.
Naval service
No significant events.
