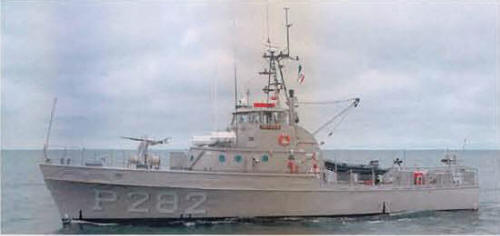

Punta Mastún 2005

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
P45 Punta Morro (ex-Point Verde, ex-WPB82311); 1993- P60 Punta Morro, 2001- P281 Punta Morro P46 Punta Mastún (ex-Point Herron, ex-WPB82318); 1993- P61 Punta Mastún, 2001- P282 Punta Mastún	USCG Yard, Curtis Bay, USA: P45, 46	1961 // 1991: P45, 46	None	None	in service (2019): P45, 46

Technical data

Displacement standard, t	64
Displacement full, t	67
Length, m	25.3
Breadth, m	5.23
Draught, m	1.95
No of shafts	2
Machinery	2 Cummins VT-12-M diesels
Power, h. p.	1600
Max speed, kts	23
Fuel, t	diesel oil 6
Endurance, nm(kts)	1500(8)
Armament	1 x 1 - 20/70 Mk 10, 1 x 1 - 12.7/90
Electronic equipment	SPS-64(v)1 radar
Complement	8

Standard scale images

Graphics

Project history

Former USCG 'Point' class boats.

Modernizations

None.

Naval service

No significant events.
