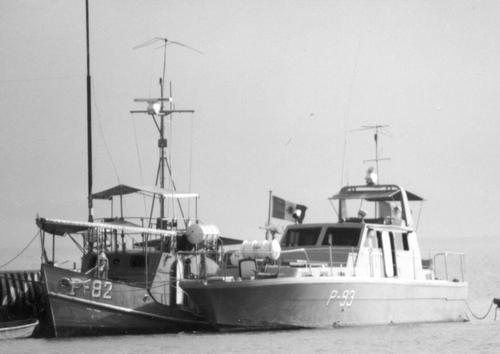

Arrecife Cabezo 2001

Ships

Names	Builders	Commissioned	Losses	Transfers	Discarding
F21 AM11, 1993- P90 Arrecife Alacran, 2001- PC301 Arrecife Alacran F23 AM13, 1993- P92 Arrecife Tanuijo, 2001- PC303 Arrecife Tanuijo F24 AM14, 1993- P93 Arrecife Cabezo, 2001- PC304 Arrecife Cabezo F25 AM15, 1993- P94 Arrecife Santiaguillo, 2001- PC305 Arecife Santiaguillo F26 AM16, 1993- P95 Arrecife Palancar, 2001- PC306 Arrecife Palancar F27 AM17, 1993- P96 Arrecife La Galleguilla, 2001- PC307 Arrecife La Galleguilla F28 AM18, 1993- P97 Arrecife La Blanquilla, 2001- PC308 Arrecife La Blanquilla F29 AM19, 1993- P98 Arrecife Anegada de Adentro, 2001- PC309 Arrecife Anegada de Adentro F30 AM20, 1993- P99 Arrecife Rizo, 2001- PC310 Arrecife Rizo F31 AM21, 1993- P100 Arrecife Pajaros, 2001- PC311 Arrecife Pajaros F32 AM22, 1993- P101 Arrecife De Enmedio, 2001- PC312 Arrecife De Enmedio F33 AM23, 1993- P102 Arrecife De Hornos, 2001- PC313 Arrecife De Hornos	Astilleros de Acapulco: F21-33	1979-1983: F21-26 1984: F27-33	None	None	2005-2006: PC301-313

Technical data

Displacement standard, t
Displacement full, t	18
Length, m	16.7
Breadth, m	4.40
Draught, m	2.40
No of shafts	2
Machinery	AM11-16: 2 Cummins UT diesels AM17-23: 2 General Motors 8V92 TI diesels
Power, h. p.	AM11-16: 800 AM17-23: 1140
Max speed, kts	AM11-16: 20 AM17-23: 25
Fuel, t	diesel oil
Endurance, nm(kts)	460(15)
Armament	1 x 1 - 12.7/90
Electronic equipment	Raytheon 1900 radar
Complement	6

Graphics

Project history

Riverine patrol craft. GRP construction.

Modernizations

None

Naval service

No significant events.
