AM1 river patrol boats (1960-1981)
Lago de Texcoco 2001
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
F11 AM01 F12 AM02 F13 AM03 F14 AM04, 1993- P80 Lago de Pátzucaro, 2001- PC321 Lago de Pátzucaro F15 AM05, 1993- P81 Lago de Chapala, 2001- PC322 Lago de Chapala F16 AM06, 1993- P82 Lago de Texcoco F17 AM07, 1993- P83 Lago de Janitzio F18 AM08, 1993- P84 Lago de Cuitzeo, 2001- PC323 Lago de Cuitzeo F19 AM09 F20 AM10 |
Astilleros de Tampico // Astilleros de Veracruz: F11-20 |
1960-1962: F11-18 1981: F19, 20 |
None |
None |
1986: F11-13, 19 1988: F20 2001: P82, 83 2004: PC323 2010: PC321, 322 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 37 |
| Length, m | 17.7 |
| Breadth, m | 5.00 |
| Draught, m | |
| No of shafts | 1 |
| Machinery | 1 diesel |
| Power, h. p. | 320 |
| Max speed, kts | 6 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | small arms |
| Electronic equipment | none |
| Complement | 5 |
Graphics

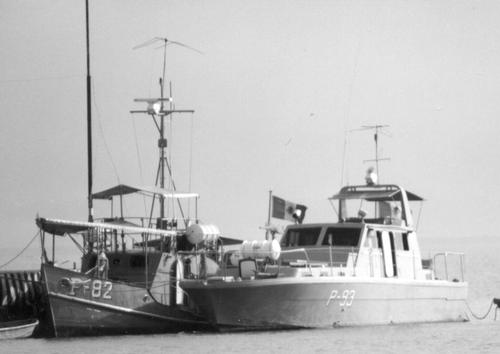

Lago de Texcoco 2001
Project history
Riverine patrol craft with low freeboard and bulwarks surrounding hull.
Modernizations
1990s, all survived: + nav. radar
Naval service
No significant events.
