P21 patrol boats (2010)
P24 2014
Ships
| Names | Builders | Commissioned | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
P21 - 24 |
Austal, Henderson, Australia: P21-24 |
2010: P21-24 |
none |
none |
in service (2020): P21-24 |
Technical data
| Displacement standard, t | 69 |
|---|---|
| Displacement full, t | |
| Length, m | 17.8 pp 21.2 oa |
| Breadth, m | 5.50 |
| Draught, m | 1.83 |
| No of shafts | 2 |
| Machinery | 2 MAN D2842 LE410 diesels |
| Power, h. p. | 2200 |
| Max speed, kts | 26 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | |
| Armament | 1 x 1 - 12.7/90, 2 x 1 - 7.6/90 |
| Electronic equipment | radar |
| Complement | 8 |
Graphics

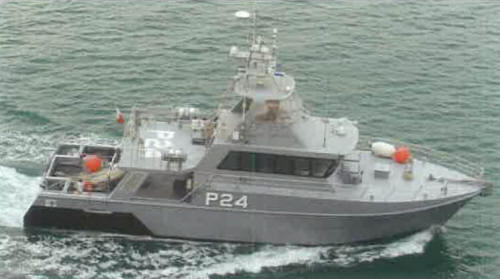

P24 2014
Project history
Austal AV22 design, ordered in 2009. Aluminium construction, 3.5m RIB can be launched and recovered via stern ramp.
Modernizations
None.
Naval service
No significant events.
