PCF318 coastal patrol craft (1974-1975)
DF318 1999
Ships
| Names | Builders | Completed | Losses | Transfers | Discarding |
|---|---|---|---|---|---|
PCF318 - 323, 1996- DF318-320 |
De Havilland Marine, Sydney, Australia: PCF318-323 |
1974-1975: PCF318-323 |
none |
none |
early 2000s: DF319 late 2000s: DF318 in service (2019): DF320-323 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 17 |
| Length, m | 14.0 |
| Breadth, m | 4.60 |
| Draught, m | 1.00 |
| No of shafts | 2 |
| Machinery | 2 Caterpillar D348 diesels |
| Power, h. p. | 740 |
| Max speed, kts | 25 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 500(12) |
| Armament | 2 x 1 - 12.7/90 |
| Electronic equipment | radar |
| Complement | 6 |
Graphics

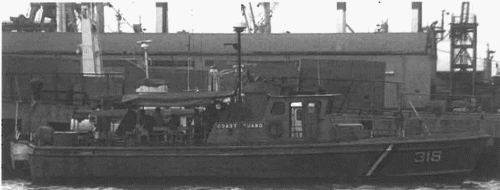

DF318 1999
Project history
Fiberglass-hulled, very similar to the US PB Mk 1 class.
Modernizations
None.
Naval service
: No significant events.
