C28 patrol boats (1967-1969/1978)
C29 1980
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| (ex-أل ركب [Al Rakib]) | C28 | Thornycroft, Woolston, UK | 15.11.1966 | 5.1967 // 1978 | discarded 1993 | ||
| (ex-أكرما [Akrama]) | C29 | Thornycroft, Woolston, UK | 15.11.1966 | early 1969 // 1978 | stricken 1989 | ||
| (ex-فروا [Farwa]) | C30 | Thornycroft, Woolston, UK | 4.5.1967 | 5.1967 // 1978 | sunk 1981 |
Technical data
| Displacement standard, t | |
|---|---|
| Displacement full, t | 100 |
| Length, m | 30.5 |
| Breadth, m | 6.40 |
| Draught, m | 1.70 |
| No of shafts | 3 |
| Machinery | 3 Rolls-Royce DV8TLM diesels |
| Power, h. p. | 1740 |
| Max speed, kts | 18 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 1800(14) |
| Armament | 1 x 1 - 20/70 Mk 7 |
| Electronic equipment | radar |
| Complement | 18 |
Graphics

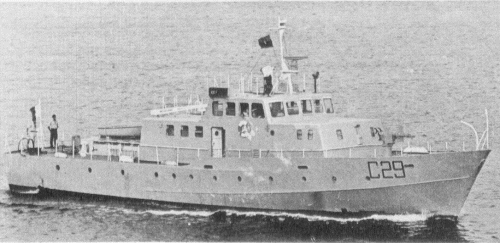

C29 1980
Project history
Former Libyan customs boats.
Modernizations
None.
Naval service
C30 was lost in 1981.
