BURUTU patrol boats (2009)





Zaria 2010

Ships


Name No Yard No Builder Laid down Launched Comp Fate
Burutu P173   Nautica Nova, Butterworth, Malaysia     3.3.2009 in service (2019)
Zaria P174   Nautica Nova, Butterworth, Malaysia     14.4.2009 in service (2019)


100 - 1000 t displacement/ BRT tonnage vessels


Name No Yard No Builder Laid down Launched Comp Fate Burutu P173   Nautica Nova, Butterworth, Malaysia     3.3.2009 in service (2019) Zaria P174   Nautica Nova, Butterworth, Malaysia     14.4.2009 in service (2019)

Technical data


Displacement standard, t
Displacement full, t

190

Length, m

38.5

Breadth, m

7.00

Draught, m

1.90

No of shafts

2

Machinery

2 MTU 16V4000 M90 diesels

Power, h. p.

7400

Max speed, kts

32

Fuel, t

diesel oil

Endurance, nm(kts)

1500(15)

Armament

1 x 1 - 40/60 Mk 9, 3 x 1 - 12.7/90

Electronic equipment

Furuno radar

Complement

25



Graphics

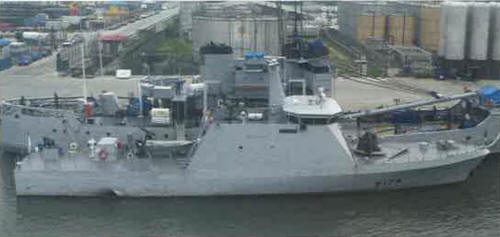

<i>Zaria </i>2010
Zaria 2010


Project history

Suncraft Sea Eagle design. Aluminium construction. Ordered in 2006 and intended for EEZ patrol and protection of offshore oil facilities.

Modernizations

None.

Naval service

No significant events.
