SRI INDERA SAKTI logistic support ships (1980-1983)





Sri Indera Sakti 2009

Ships


Name No Yard No Builder Laid down Launched Comp. Fate
Sri Indera Sakti 1503   Bremer Vulcan, Bremen, West Germany 15.2.1980 1.7.1980 24.10.1980 in service (2019)
Mahawangsa 1504   Hanjin Heavy Ind., Pusan, South Korea 1982 1983 16.5.1983 in service (2019)


Technical data


Displacement standard, t

1800

Displacement full, t

1503: 4300

1504: 5000

Length, m

1503: 91.2 pp 100.0 oa

1504: 103.0

Breadth, m

15.0

Draught, m

1503: 4.75

1504: 5.00

No of shafts

2

Machinery

2 Deutz S/BMV6540 diesels

Power, h. p.

6000

Max speed, kts

16.5

Fuel, t

diesel oil 1350 max

Endurance, nm(kts)

4000(15)

Armament

1503: 1 x 1 - 57/70 SAK-57 Mk 1, 2 x 1 - 20/90 GAM-B01, helicopter deck

1504: 2 x 1 - 57/70 SAK-57 Mk 1, 2 x 1 - 20/90 GAM-B01, helicopter deck

Military load

1503: 1800 t of cargo (inc. 1300 t of fuel, 200 t of fresh water) or 17 tanks or 600 troops, 80 passengers

1504: 410 t of ammunition, 17 tanks, 11 3-ton trucks or 600 troops, 50 passengers

Electronic equipment

1503: 2x Decca TM1226 radars, Naja e/o system, DR-3000 ECM suite

1540: 2x Decca TM1226 radars, 2x Naja e/o systems, DR-3000 ECM suite

Complement

1503: 140

1504: 129



Standard scale images


<i>Sri Indera Sakti</i> 1990
Sri Indera Sakti 1990


Graphics

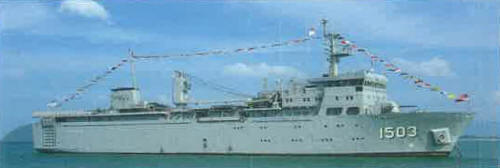

<i>Sri Indera Sakti </i>2009
Sri Indera Sakti 2009

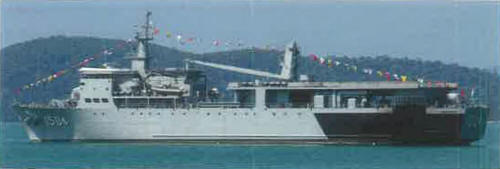

<i>Mahawangsa </i>2011
Mahawangsa 2011


Project history

Usable as training ships, coastal craft tenders, command & control ships and troops transports. Ships had helicopter deck (with helicopter deck on Mahawangsa is effectively double larger than on Sri Indera Sakti due to lack of funnel), side ports for vehicles aft and 16t crane amidships. Also large operation room, vehicle holds and divers' compression chamber are included. Mahawangsa can carry 410 tons of ammunition, both ships have 1000m³ of cargo space for spare parts, 10 standard 20ft containers can be carried on deck amidships. Both can carry 17 tanks but Mahawangsa can also stow 11 3-ton trucks on deck beneath the helicopter platform. 680m² vehicle deck equipped by side ramps can also accommodate up to 600 troops.

Modernizations

None.

Naval service

No significant events.
