TEMPUR 001 landing craft (1998-2002)





Tempur 301 2013

Ships


Names Builders Completed Losses Transfers Discarding

001-002 Tempur 001-002

101-102 Tempur 101-102

201-205 Tempur 201-205

211-217 Tempur 211-217

301 Tempur 301

Dockstavarvet, Docksta, Sweden: 001, 002, 101, 102, 201-205, 211-217, 301

1998-1999: 201-205

2000-2002: 001, 002, 101, 102, 211-217, 301

none

none

in service (2019): 001, 002, 101, 102, 201-205, 211-217, 301


Technical data


Displacement standard, t13
Displacement full, t20
Length, m13.0 pp 15.9 oa
Breadth, m3.80
Draught, m1.00
No of shafts2 waterjets
Machinery

2 Caterpillar 3406E diesels
Power, h. p.1600
Max speed, kts

45
Fuel, t

diesel oil 2.5
Endurance, nm(kts)240(30)
Armament

1 x 1 - 7.6/90
Military load20 troops or 2.8 t of cargo
Electronic equipmentFuruno 1834 radar
Complement3


Graphics

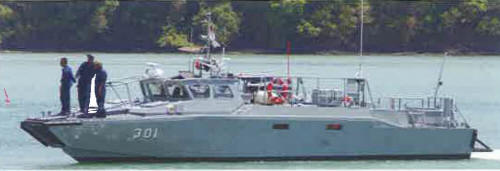

<i>Tempur 301 </i>2013
Tempur 301 2013


Project history

Swedish CB90H personnel landing craft. Used primarily as patrol and logistic support craft operating from Borneo.

Modernizations

None.

Naval service

No significant events.
