Jebat 2013

Ships

Name	No	Yard No	Builder	Laid down	Launched	Comp	Fate

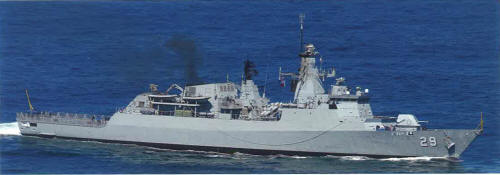

Jebat	29		GEC-Yarrow SB, Scotstoun, UK	11/1994	27.5.1995	18.11.1999	in service (2019)
Lekiu	30		GEC-Yarrow SB, Scotstoun, UK	3/1994	3.12.1994	9.10.1999	in service (2019)

Technical data

Displacement standard, t	1845
Displacement full, t	2390
Length, m	97.5 pp 105.5 oa
Breadth, m	12.8
Draught, m	3.80 hull
No of shafts	2
Machinery	4 MTU 20V1163 TB93 diesels
Power, h. p.	33200
Max speed, kts	28.5
Fuel, t	diesel oil
Endurance, nm(kts)	5000(14)
Armament	2 x 4 MM40 Exocet Block II SSM (8 MM40 Block II), 1 x 16 Sea Wolf GWS26 Mod.1 SAM (VLS, 16 Sea Wolf), 1 x 1 - 57/70 SAK-57 Mk 2, 2 x 1 - 30/75 DS-30B, 2 x 1 - 12.7/90, 2 x 3 - 324 ILAS-3 TT (6 A244/S), 1 helicopter (Fennec)
Electronic equipment	Decca nav., Sea Giraffe 150HC, DA-08, 2x type 1802 radars, Radamec 2400, V3901 e/o systems, Spherion sonar, Mentor-2(v)1, Scimitar ECM suites, 2x SuperBarricade decoy RL, Sea Siren torpedo decoy, Nautis-F CCS
Complement	146

Standard scale images

Graphics

Project history

F2000 design, ordered in 1992. Planned to be commissioned in 1996 but outfitting was protracted due to problems with weapons-control system integration. Hull and superstructure shaped to reduce radar signature.

Modernizations

mid-2000s, both: - 1 Fennec helicopter; + 1 Super Lynx helicopter

Naval service

No significant events.
