ERRADI frigates (2016-2017)
Ships
| Name | No | Yard No | Builder | Laid down | Launched | Comp | Fate |
|---|---|---|---|---|---|---|---|
| إرادي [Erradi] | 910 | TKMS, Kiel, Germany | 2012 | 5.12.2014 | 21.4.2016 | in service (2019) | |
| المضامير [El Moudamir] | 911 | TKMS, Kiel, Germany | 2013 | 11.12.2015 | 2017 | in service (2019) |
Technical data
| Displacement standard, t | 2500 |
|---|---|
| Displacement full, t | 3400 |
| Length, m | 107.3 wl 121.0 oa |
| Breadth, m | 16.3 |
| Draught, m | 5.05 |
| No of shafts | 1 waterjet + 2 |
| Machinery | CODAG: 1 General Electric LM2500 gas turbine + 2 MTU 16V1163 TB93 diesels |
| Power, h. p. | 27200 + 16100 = 43300 |
| Max speed, kts | 30 |
| Fuel, t | diesel oil |
| Endurance, nm(kts) | 7500(16) |
| Armament | 2 x 4 RBS-15 Mk 3 SSM (8 RBS-15 Mk 3), 2 x 16 Umkhonto SAM (VLS, 32 Umkhonto), 1 x 1 - 127/64 OTO-Melara Compact LW, 2 x 1 - 27/63 Mauser MLG-27, 2 x 2 - 324 TT (MU-90), 1 helicopter (Super Lynx 300) |
| Electronic equipment | Sea Giraffe AMB 3D, 2x Ceros 200, 2x nav. radars, Kingklip UMS-4132 sonar, ECM suite, 4x MASS decoy RL, 2x WASS C310 torpedo decoys, Morpheus anti-torpedo system, CCS |
| Complement |
Standard scale images

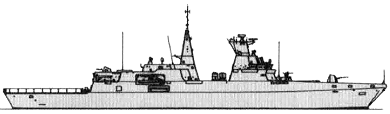

Erradi 2016
Project history
MEKO A200N design, the second batch of MEKO 200 frigates (after South African) with unusual CODAG-WARP system (COmbined Diesel And Gas turbine - WAter jet and Refined Propellers), including a waterjet on central shaft and CP propellers on side shafts. Ordered in 2012 with option for two more.
Modernizations
None.
Naval service
No significant events.
